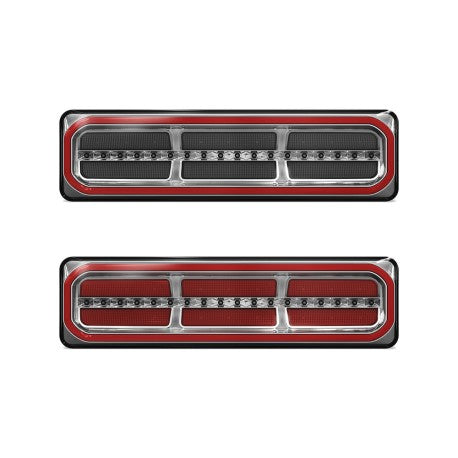

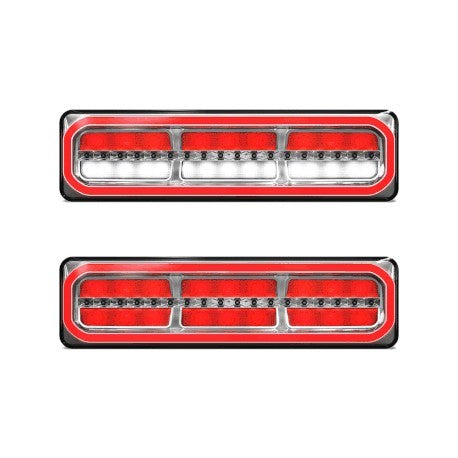

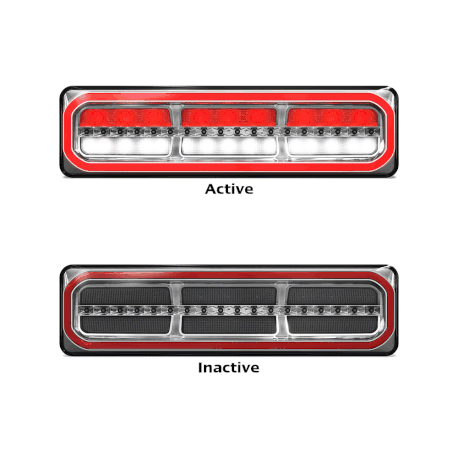

LED Autolamps 3854ARWM-2 Twin Pack LED Combination Lamp 12/24V Stop/Tail/Sequential Indicator/Reverse
Features / Specifications
- Diffused Tail Function
- Sequential Indicator
- ADR Approved
- IP67 100% Waterproof
- Voltage Range 12-24 Volt

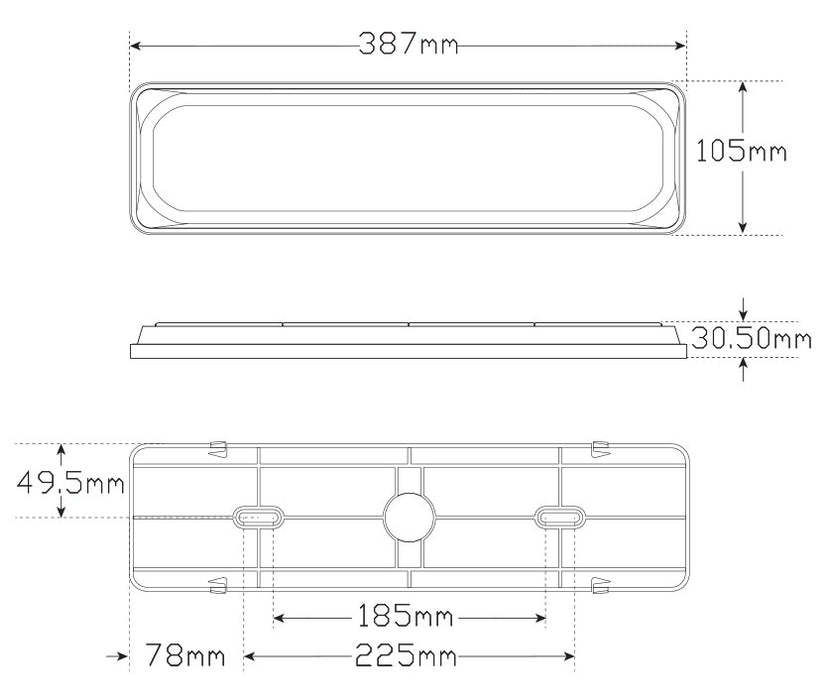

- 387mm x 105mm x 30.5mm
- 5 Year Warranty
Fitting Instructions
Separate the base plate from the lamp and horizontally mount, onto a flat surface using screws provided, ensuring the correct side is facing outwards. Run the wire through the hole in fixing surface then re-align the lamp and clip into the mounting base using light pressure to ensure it sits in place correctly. Please refer to ADR 13/00 for mounting instructions.
| Function | Stop/Tail/Indicator/Reverse | |||
| Part No. | ||||
| 38541ARWM-2 | Twin Blister | |||
| 38541ARWMLCSB | LHS with 7 Pin Plug | |||
| 38541ARWMRCSB | RHS with 7 Pin Plug | |||
| . | ||||
| LED Qty | 102 | |||
| Cable | 40cm | |||
| Draw | Stop | Tail | Ind | Rev |
| @13.8V | 0.15A | 0.4A | 0.35A | 0.4A |
| @28V | 0.08A | 0.21A | 0.21A | 0.21A |
| Approvals | Category | Approval No. | ||
| CTA | 49/00, 6/00 2a, 01/00 | CTA-060016 |
